RG-400/U Type Coax Cable

Specification:

MIL-C-17/128

Continuous working voltage:

1400V rms max

Operating temperature range:

-55°C ~ +200°C

Item

Material

Diameter

Remark

Center conductor

SPC

1.00mm (0.039")

Strand 19/0.203

Dielectric

PTFE (Solid)

2.95mm (0.116")

Inner shield

SPC (Braid)

3.60mm (0.142")

97% Coverage

Outer shield

SPC (Braid)

4.20mm (0.165")

94% Coverage

Jacket

FEP

4.95mm (0.195")

Light brown color

Item

Specification

Remark

Operating frequency

12.4 GHz max

Conductor resistance

0.91 Ohm/100ft max

at 20°C

Dielectric resistance

1000 MOhm/km min

at 20°C

Test voltage

3000 V rms

1 min

Velocity of propagation

69.5% nom

Capacitance

32 pF/ft max

Characteristic impedance

50 ± 2 Ohm

Approx. weight

64.0 kg/km

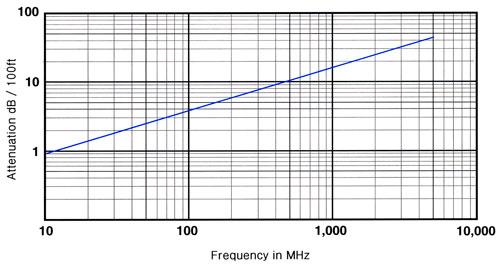

Nom. attenuation

2.8 dB/100ft (0.09 dB/m)

at 50 MHz

4.0 dB/100ft (0.13 dB/m)

at 100 MHz

9.8 dB/100ft (0.32 dB/m)

at 500 MHz

14.7 dB/100ft (0.48 dB/m)

at 1 GHz

22.4 dB/100ft (0.73 dB/m)

at 2 GHz

29.0 dB/100ft (0.95 dB/m)

at 3 GHz

40.6 dB/100ft (1.33 dB/m)

at 5 GHz
