SR-047 Type Coax Cable

Specification:

MIL-C-17/151

Continuous working voltage:

1000V rms max

Operating temperature range:

-40°C ~ +125°C

Item

Material

Diameter

Remark

Center conductor

SPCW

0.287mm (0.011")

Solid type

Dielectric

PTFE (Solid)

0.94mm (0.037")

Outer shield

Tinned Copper (Braid)

1.19mm (0.047")

100% Coverage

Item

Specification

Remark

Operating frequency

20 GHz max

Conductor resistance

20.9 Ohm/100ft max

at 20°C

Dielectric resistance

1000 MOhm/km min

at 20°C

Test voltage

2000 V rms

1 min

Velocity of propagation

69.5% nom

Capacitance

32 pF/ft max

Characteristic impedance

50 ± 2 Ohm

Approx. weight

5.7 kg/km

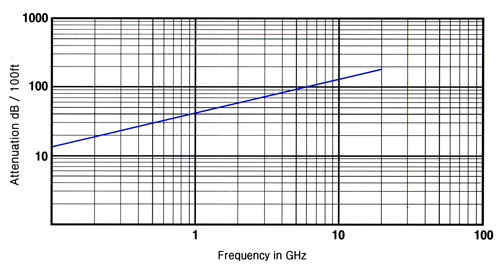

Max. attenuation

28.0 dB/100ft (0.92 dB/m)

at 500 MHz

40.0 dB/100ft (1.31 dB/m)

at 1 GHz

70.0 dB/100ft (2.30 dB/m)

at 3 GHz

90.0 dB/100ft (2.95 dB/m)

at 5 GHz

130.0 dB/100ft (4.27 dB/m)

at 10 GHz

190.0 dB/100ft (6.23 dB/m)

at 20 GHz
