SF-085P Type Coax Cable

Specification:

MIL-C-17/133

Continuous working voltage:

1500V rms max

Operating temperature range:

-40°C ~ +125°C

Item

Material

Diameter

Remark

Center conductor

SPCW

0.511mm (0.02")

Solid type

Dielectric

PTFE (Solid)

1.68mm (0.066")

Outer shield

Tinned Copper (Braid)

2.20mm (0.087")

100% Coverage

Jacket

PVC (Clear)

3.20mm (0.1061")

Item

Specification

Remark

Operating frequency

20 GHz max

Conductor resistance

2.57 Ohm/100ft max

at 20°C

Dielectric resistance

1000 MOhm/km min

at 20°C

Test voltage

5000 V rms

1 min

Velocity of propagation

69.5% nom

Capacitance

32 pF/ft max

Characteristic impedance

50 ± 2 Ohm

Approx. weight

22.0 kg/km

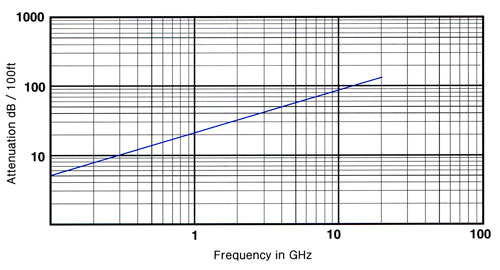

Max. attenuation

15.0 dB/100ft (0.49 dB/m)

at 500 MHz

22.0 dB/100ft (0.72 dB/m)

at 1 GHz

50.0 dB/100ft (1.64 dB/m)

at 5 GHz

80.0 dB/100ft (2.62 dB/m)

at 10 GHz

130.0 dB/100ft (4.27 dB/m)

at 20 GHz
